Main Features

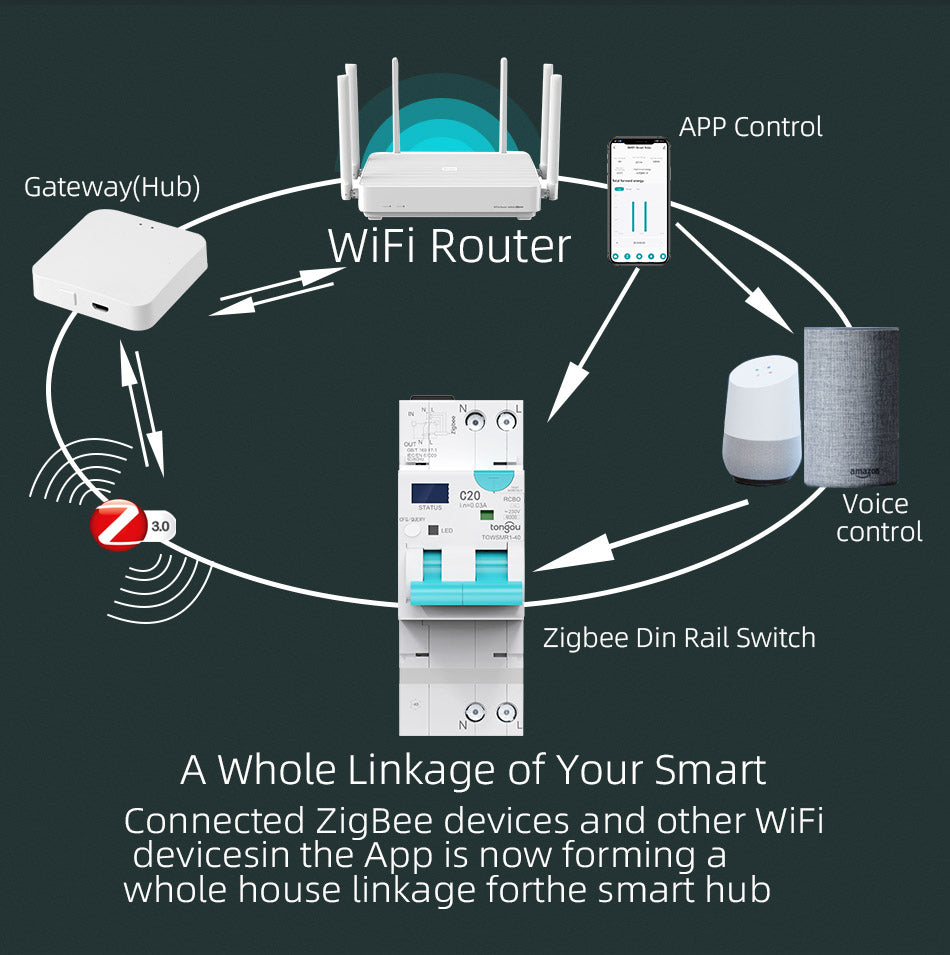

[ZigBee 3.0 Protocol] For stable ZigBee smart RCBO operation, please use it with a Tuya ZigBee hub/ gateway. And please ensure that the gateway's firmware version meets the version specified. If not, the alarm/ temperature/ trip and recloser functions will be affected
[Smart Electrical Protection] This device offers all-in-one protection against short circuits, overload, over-current, over-voltage, undervoltage, leakage current, overpower, and overheating. Customize protection thresholds directly from the app and receive instant proactive alerts on your phone the moment a value is exceeded.
[Intelligent Auto-Recloser] The breaker can automatically attempt to restore power after a tripping event (within 15 minutes). For persistent faults, it will remain off for safety. Manual reset is also simple via a long press or power cycle.
[Remote Monitoring & Smart Control] Gain full insight and control from anywhere. Use the Tuya/Smart Life app for real-time monitoring of voltage, current, power, temperature, and more. Execute remote on/off commands or use voice control with Amazon Alexa or Google Assistant for ultimate convenience.

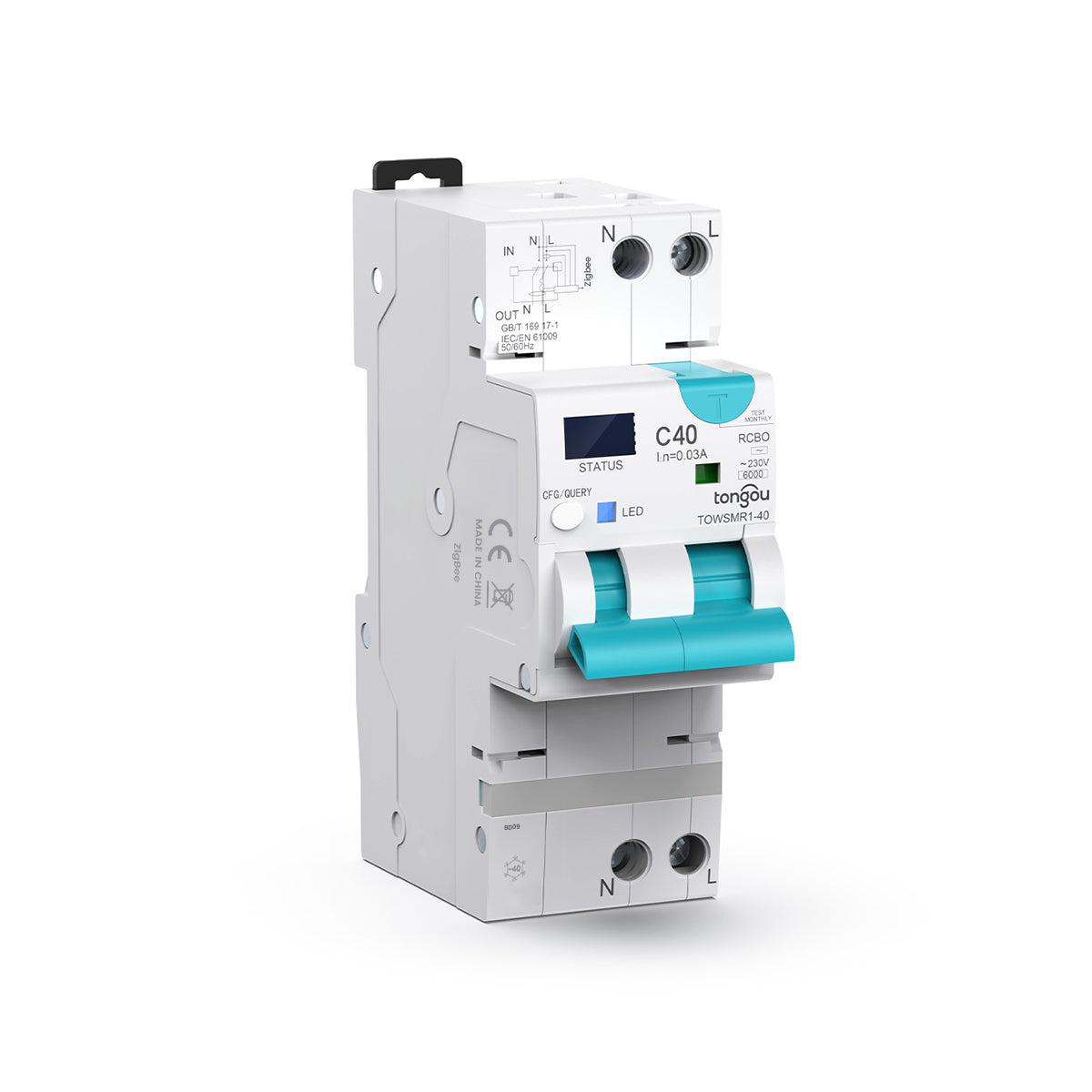

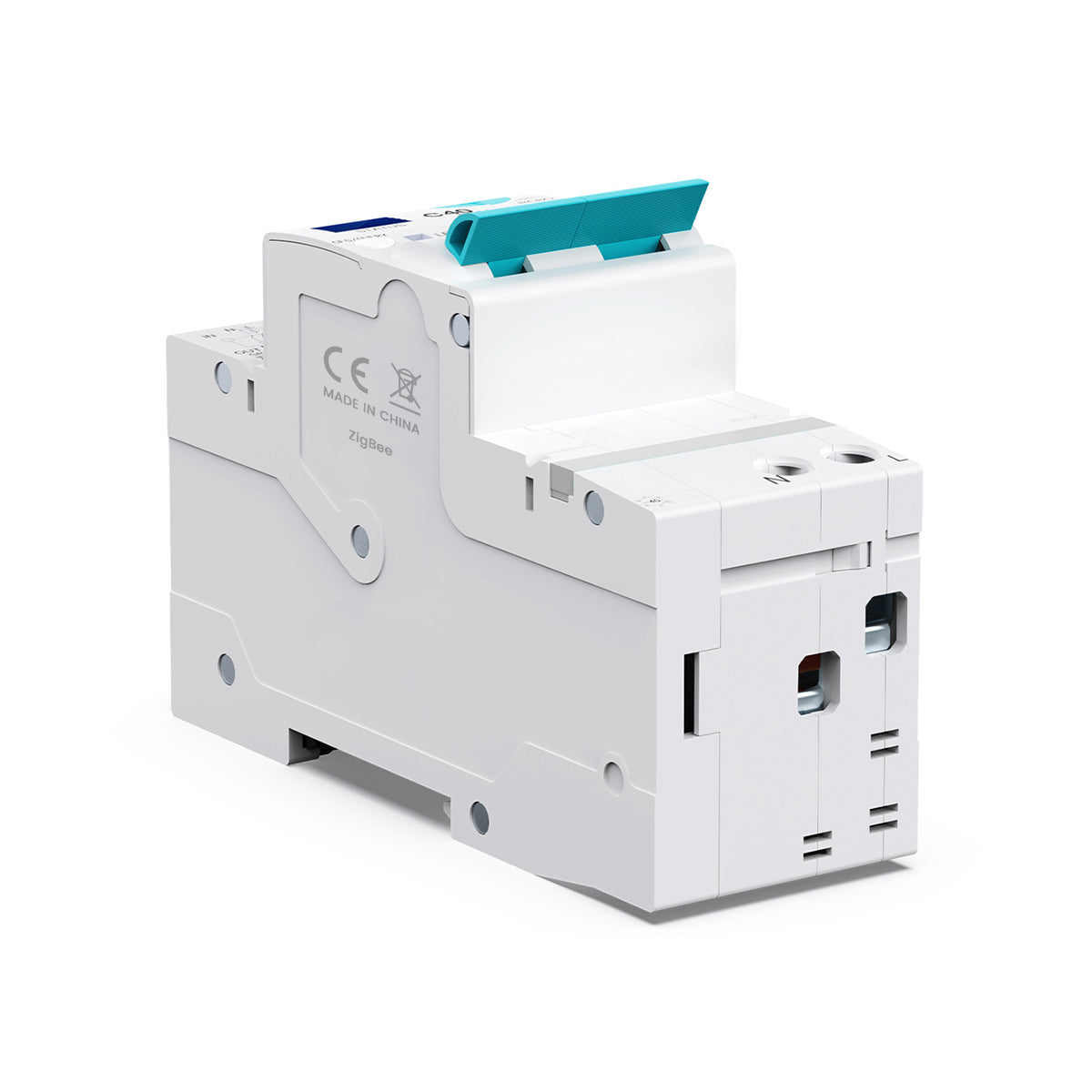

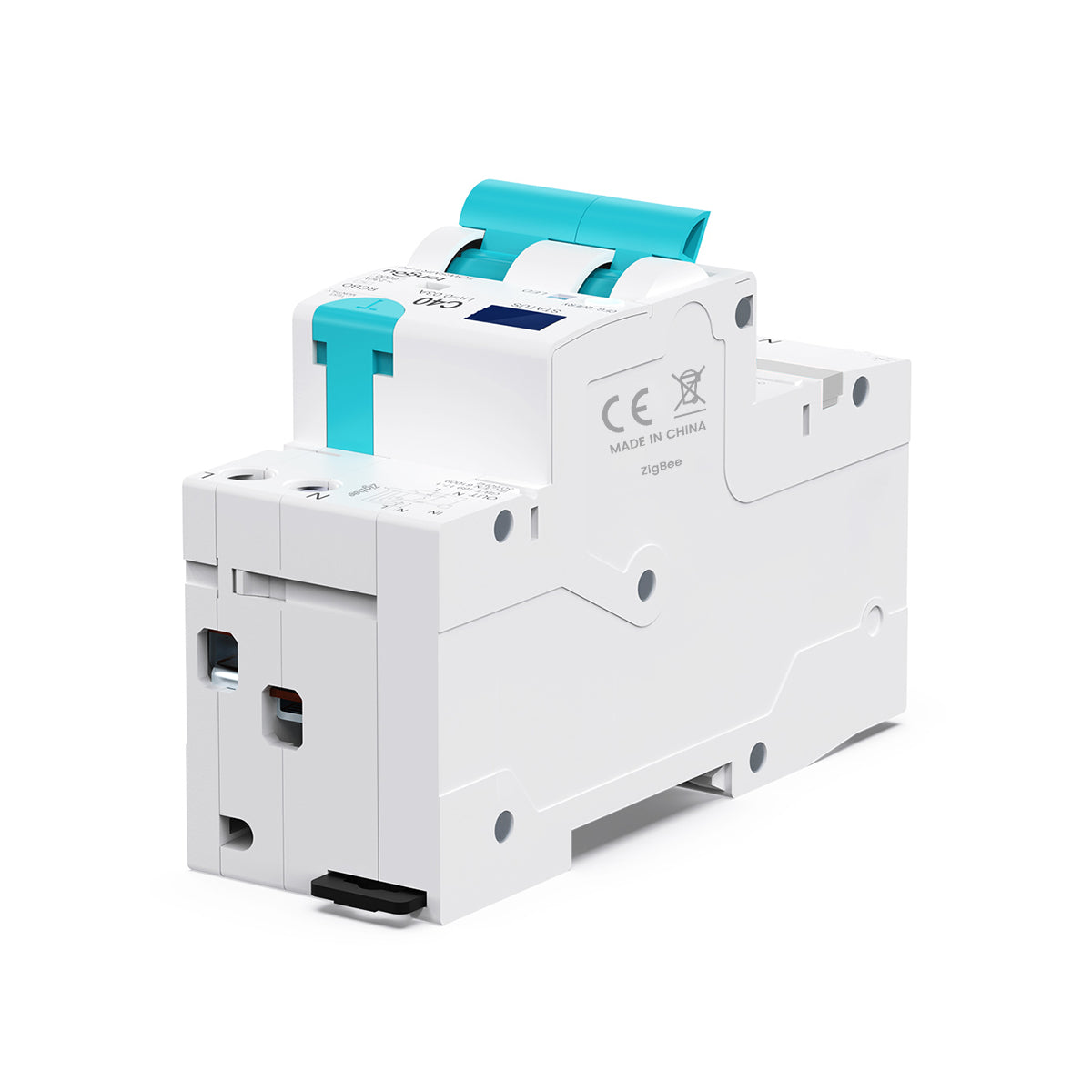

[Easy DIN Rail Installation & Robust Build] Designed for electricians and DIY enthusiasts. The compact, 2-module (36mm) design fits standard DIN rails. It features secure screw terminals and a self-extinguishing, heat-resistant case for durable performance.
[Adjustable Settings & Certified Quality] Tailor the protection to your needs with an adjustable rated current (1-20A/1-40A, Type AC) and leakage protection threshold (30-100mA).
RCBO Zigbee: TOSMR1 es un interruptor automático diferencial Zigbee con protección de fuga a tierra. Combina las funciones de un RCBO tradicional con inteligencia, se instala en el cuadro eléctrico doméstico y protege a la familia. Control remoto y temporizador mediante Tuya/Smart Life; las dos versiones de corriente nominal [1–20 A][1–40 A] se ajustan en la app.
Función de recierre: tras un disparo por sobrecorriente, sobretensión, subtensión o fuga, TOSMR1 se reengancha solo sin intervención manual.
Principales características:
-

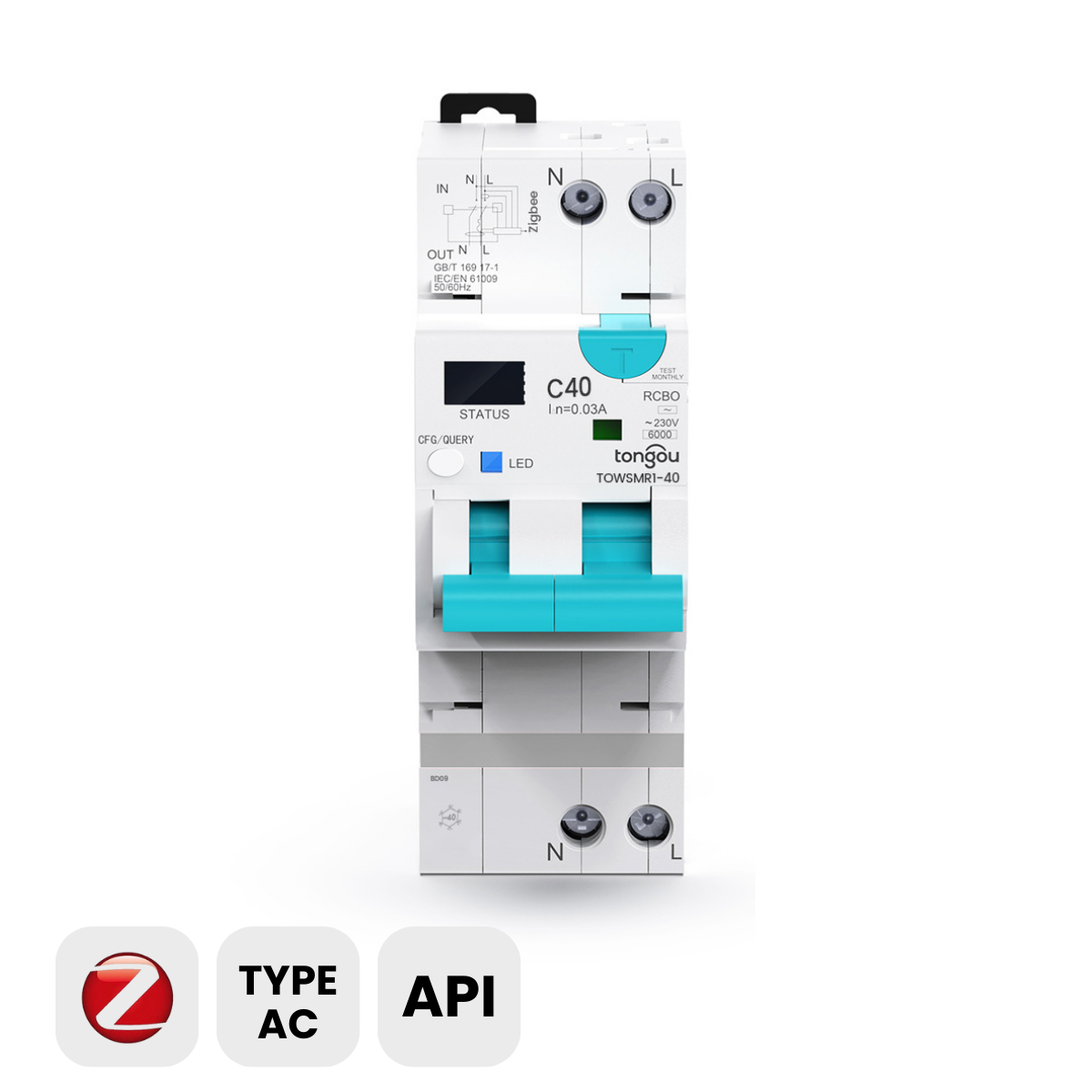

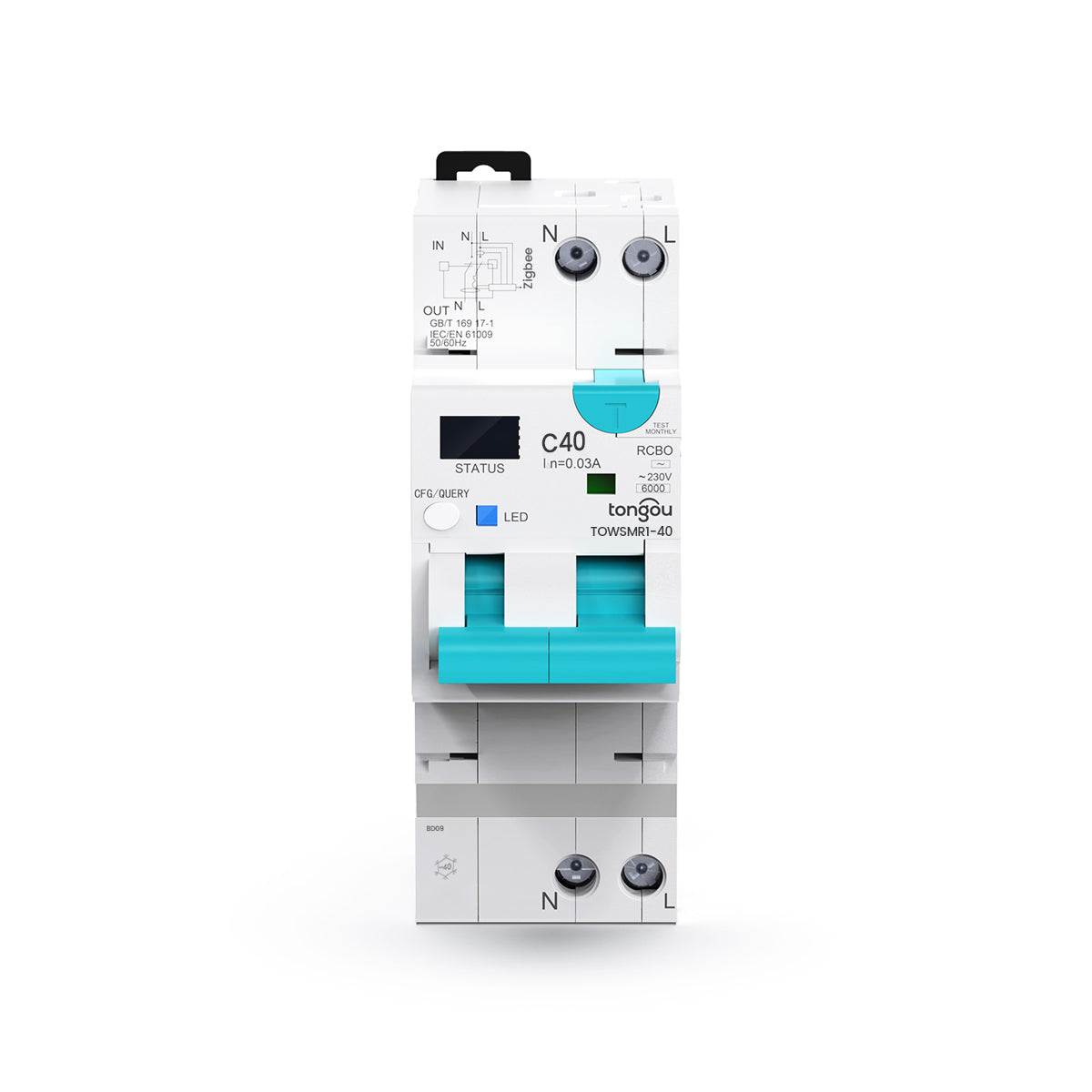

Aplicación y visualización: “Smart RCBO” diferencial de 2 módulos para carril DIN, compatible con Tuya/Smart Life.
-
Configuración de corriente y fuga: curva C 1–40 A, corriente de descarga tipo AC 30–100 mA ajustables.
-
Funciones de protección: cortocircuito, sobrecorriente, sobrecalentamiento, sobretensión y subtensión.
-
Reinicio automático: ante disparo por tensión, reenganche hasta 3 veces tras normalizarse; tras corte de suministro el equipo queda cerrado (solo por tensión, por seguridad).
-
Control inteligente: mando a distancia y creación de escenas desde la app.
-

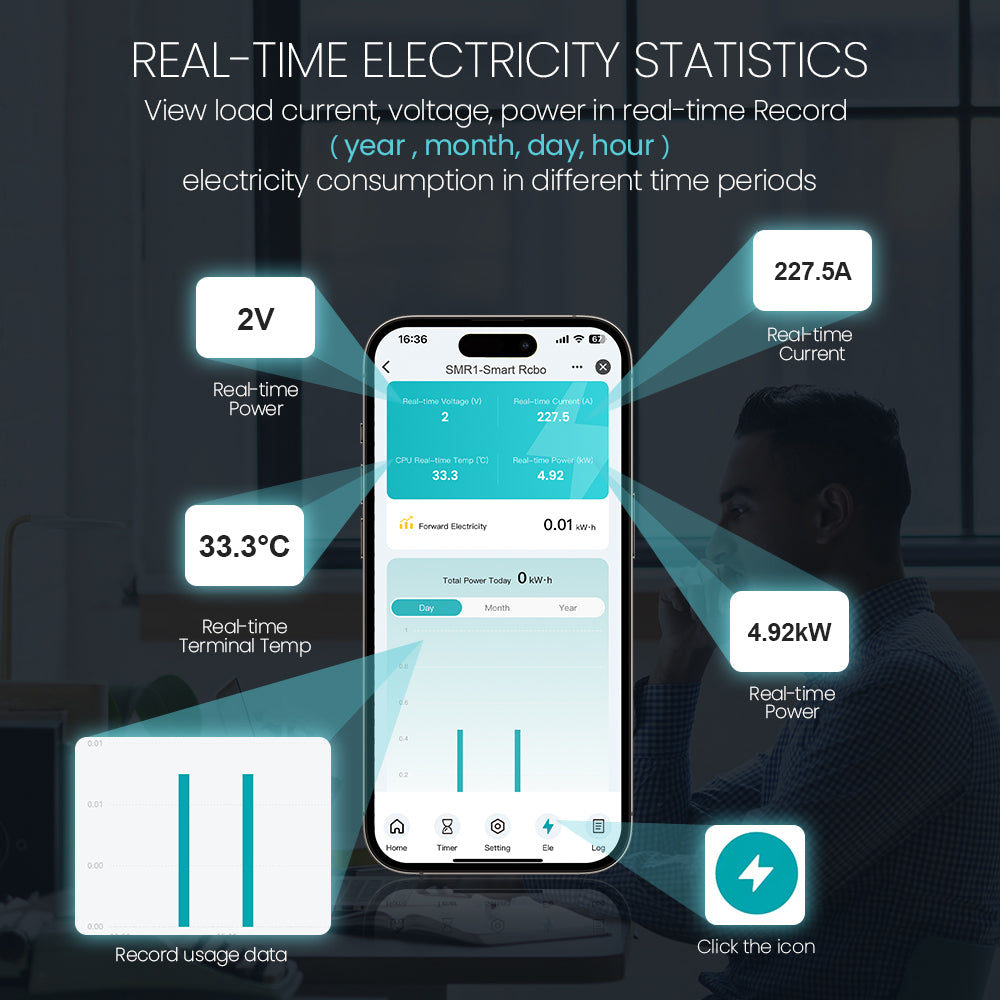

Medición de energía: consumo en kWh (día/mes/año), registro de eventos, temporizador programable.
-
Escenarios de uso: hogar, fábrica, residencia, agricultura, técnica municipal – control inteligente de bombas, calentadores, suelo radiante, etc.
| Item Model Number | TOSMR1 |
| Breaker Style | Din Rail Smart RCBO |
| Poles Number | 1P+N |
| Manufacturer | Tongou |
| Current Rating | 40 Amps |
| Operating Voltage | 230 Volts |
| Specification Met | CE |
| Included Components | User manual x1 |
| Batteries Included? | NO |
| Batteries Required? | NO |
