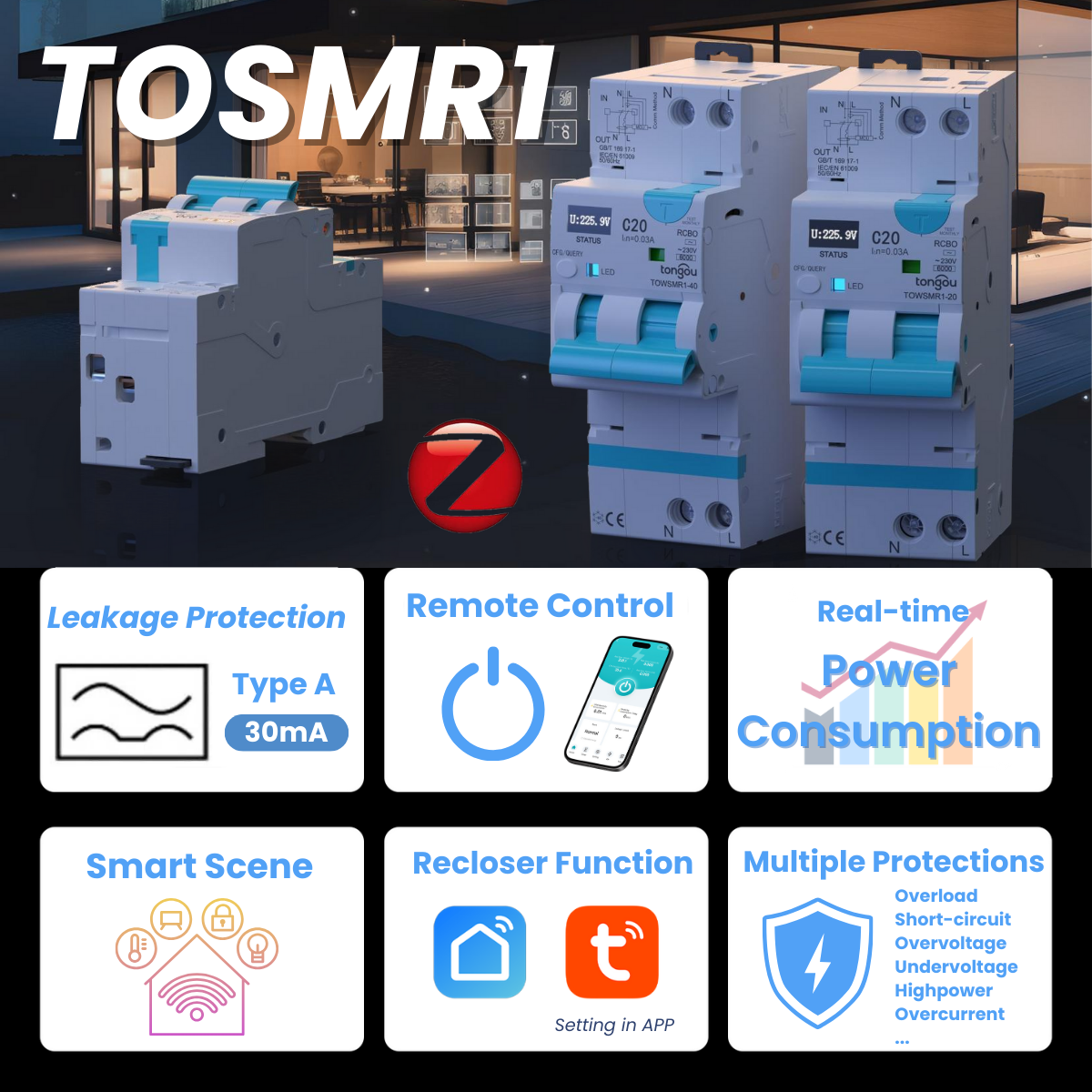

TOSMR1 Zigbee Smart Tuya 30mA Type A RCBO Auto-reclosing Leakage Protection 20A/40A Adjustable TONGOU

Tongou Tuya Smart Type A RCBO Circuit Breaker TOSMR1

Leakage Sensitivity: 30mA  Fixed

Zigbee RCBO: TOSMR1 is a Zigbee RCBO residual current circuit breaker with earth leakage protection. This product combines the functions of traditional RCBO with intelligence, and can be loaded in the home distribution box to protect the family safety. TOSMR1 can be remotely controlled using tuya smart life, timer mode, and the two versions of rated current [1-20A][1-40A] can be adjusted according to the actual needs of the family in the APP.
Reclosing Function: After TOSMR1 is installed, if tripping occurs due to over-current, over-voltage, under-voltage or leakage, it can reclosing itself to restore power supply without manual operation.

Main Features:

Application and display: residual current circuit breaker "Smart RCBO" with compact dimensions of 2 modules for DIN rail. Compatible with Tuya and Smart Life applications.

Protection function: additional short circuit, over-current, overheating, over-voltage and undervoltage protection.

Automatic reset: when the circuit breaker triggers due to voltage protection, it closes automatically when the circuit voItage is back to normal. With up to three attempts after a trigger. After disconnecting and reconnecting the power supply. This product is in a closed state. For safety reasons, this function only applies to triggers due to voltage.

Intelligent control and scenarios: remote control and scenario creation via the Tuya or Smart Life app.

Power measurement and practical functions: power measurement in kWh (day, month, year), event logging and programmable timer.

Application scenario: WiFi smart circuit breaker can be widely used in the home, factory, dormitory, farmland, municipal technology, can intelligently control the water pump, water heaters, underfloor heating, etc.
