TO-Q-SA1 Single-wire Version Tuya Wi-Fi Smart Accessory
Note:

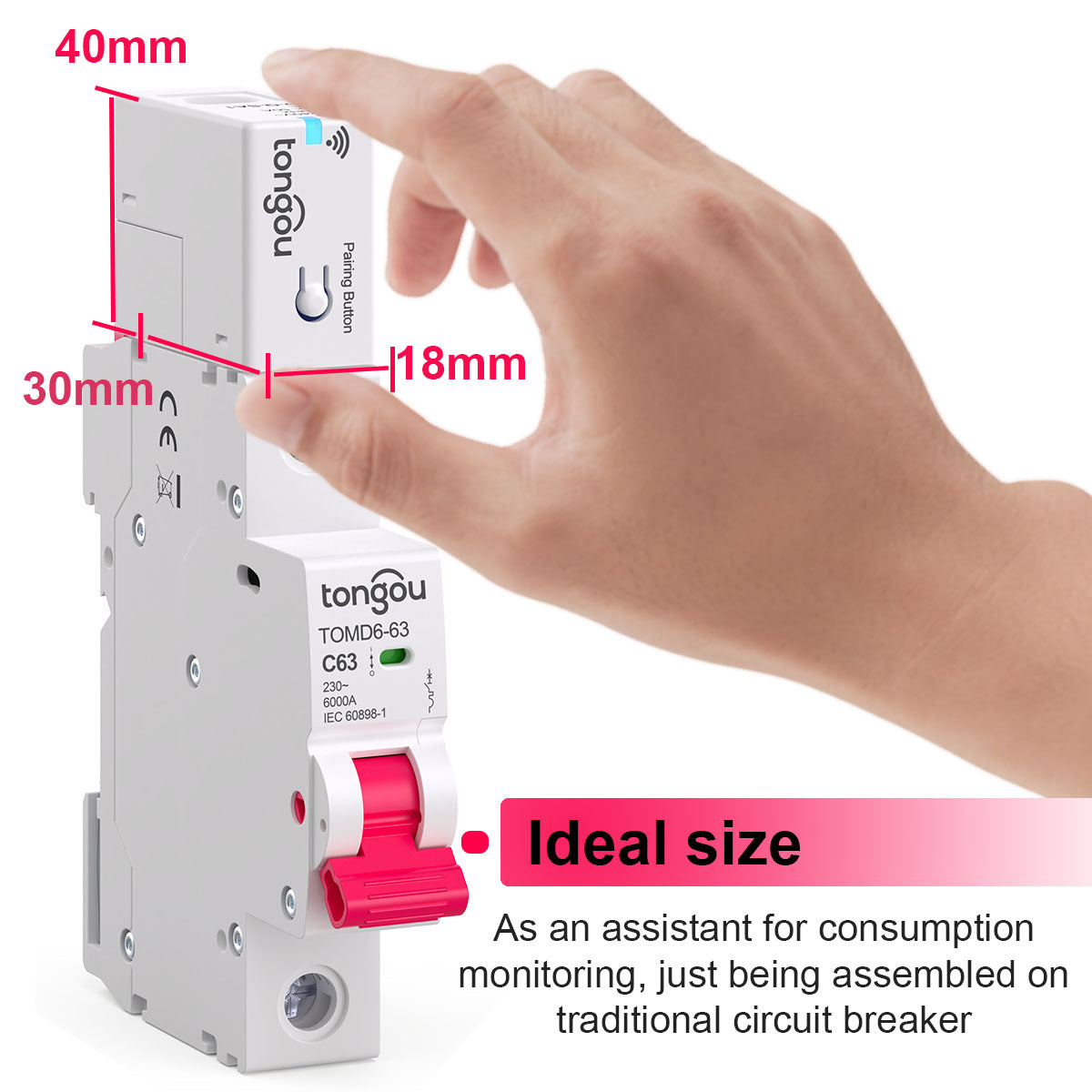

This item Single-wire Version needs to be used with a traditional circuit breaker.
The Dual-wire version can connect to the L+N line for separate use

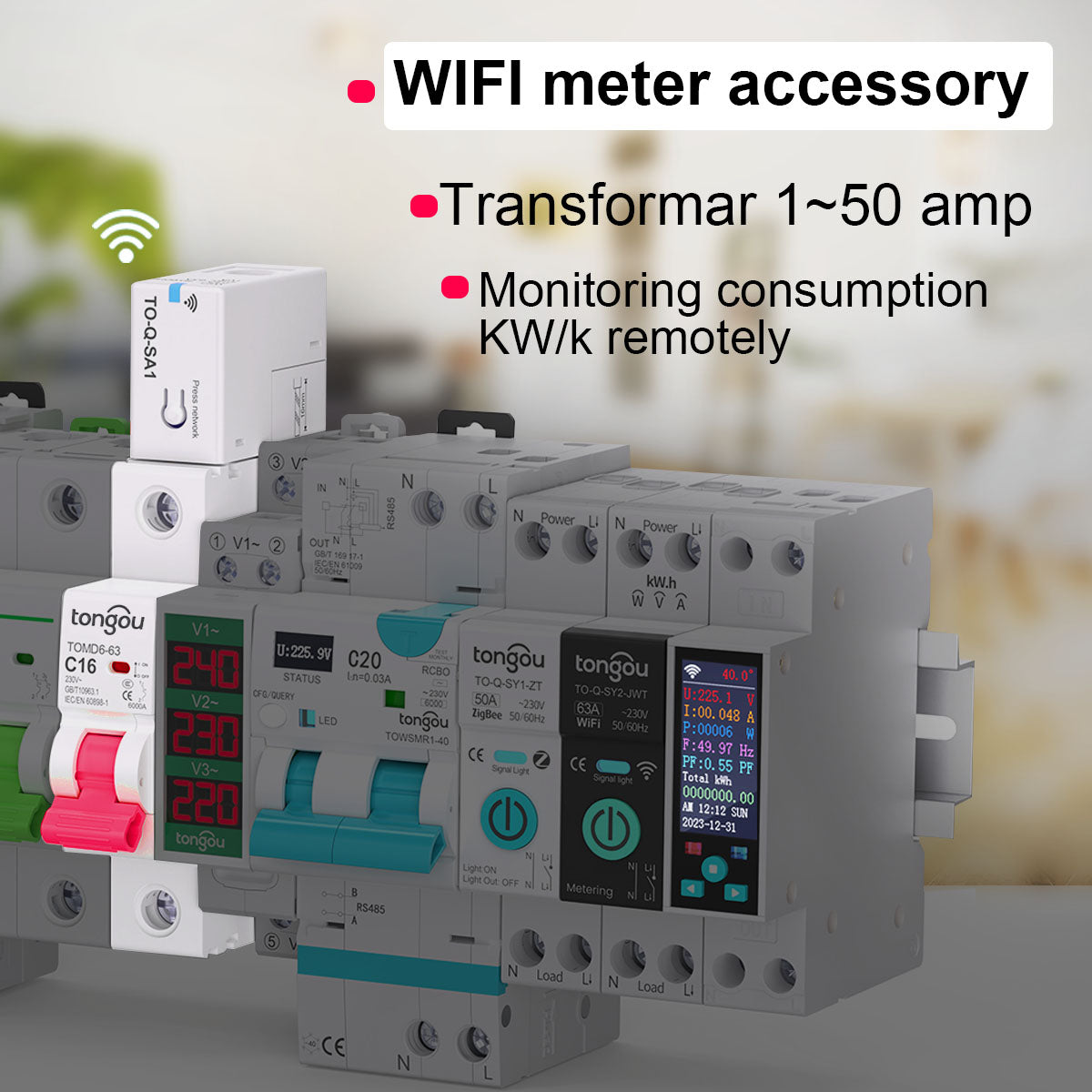

Smart energy accessories are an important part of the functionality of a smart energy system, helping to improve the efficiency and sustainability of energy use through smart technology.TO-Q-SA1 can be used with traditional circuit breakers to help refurbish their functionality and add metering capabilities.

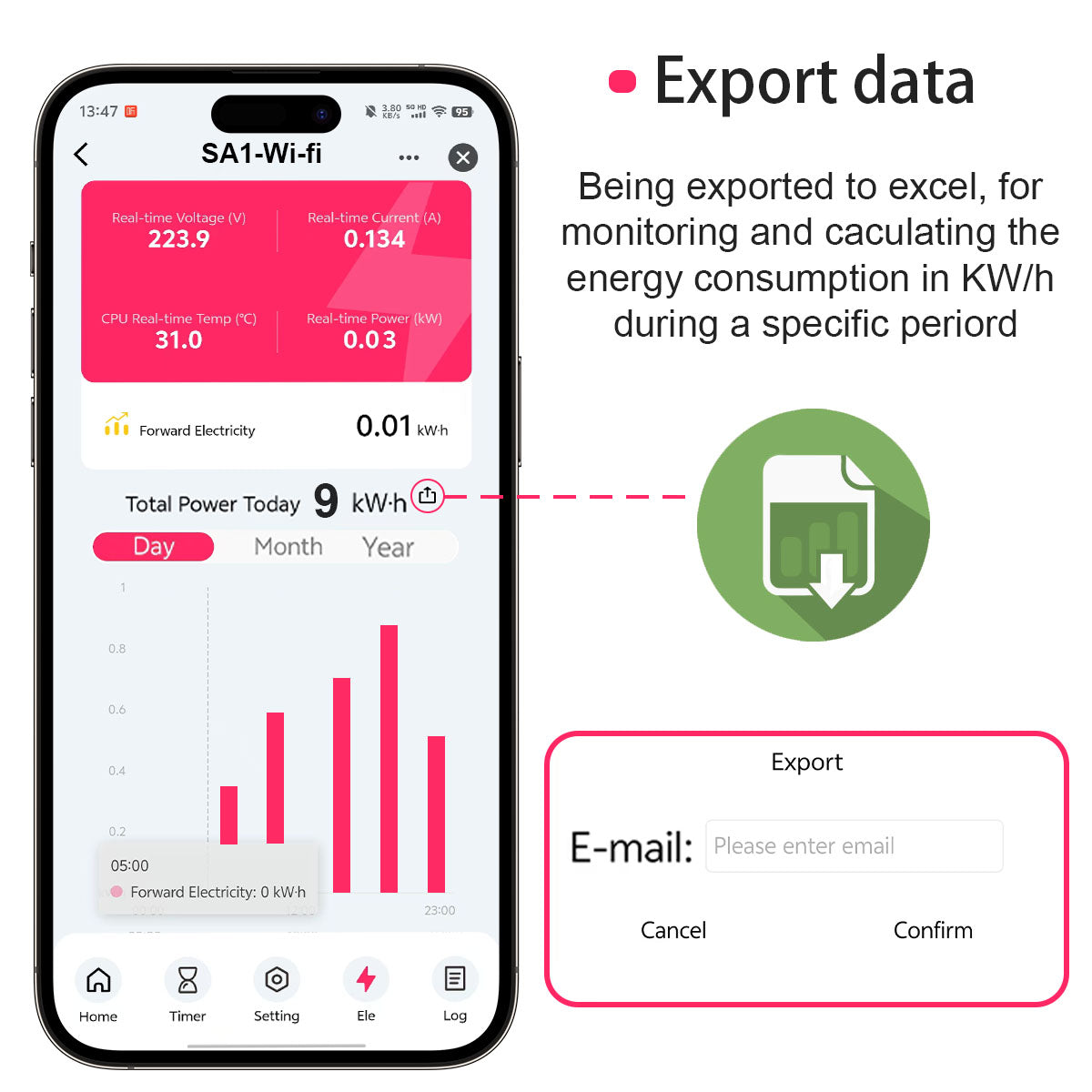

Monitoring Physical Data: Real-time Voltage, Real-time Current, Real-time Power (Forward), Power Consumption (Forward), Internal Temperature Function
Description: Over-voltage Alarm, Under-voltage Alarm, Over-current Alarm, Over-Power Alarm, Temperature Alarm, Prepaid Monitoring
| Item Model Number | TO-Q-SA1 |
| Switch Style | Smart Accessories |
| Switch Type | 1P |
| Manufacturer | Tongou |
| Operating Rated Voltage Ue (V) | 1P AC 100-240V |
| Operating Temperature(In) | – 25℃ to +60℃/-13℉ to + 140℉ |
| Frequency | 50/60Hz |
| Energy Comsumption Measurement Accuracy | Class 1.0 |
| Minitial Current Value | 100mA |
| Communication Protocol (Optional)l | —TCP/IP: Wi-Fi(2.412-2.484GHZ)IEEE 802.11b/g/n —Zigbee (2.400-2.483GHz)IEEE 802.15.4 —LTE Cat.1: LTE-FDD: B1/B3/B5/B8 —LTE-TDD: B34/38/39140/41(2535-2655MHz) —LTE-FDD:B1/B3/B5B7/B8/B20/B28A* —LTE-TDD:B38140/41 GSMGPRS: GSM900DCS1800 —TCP/UDP: Matter |
