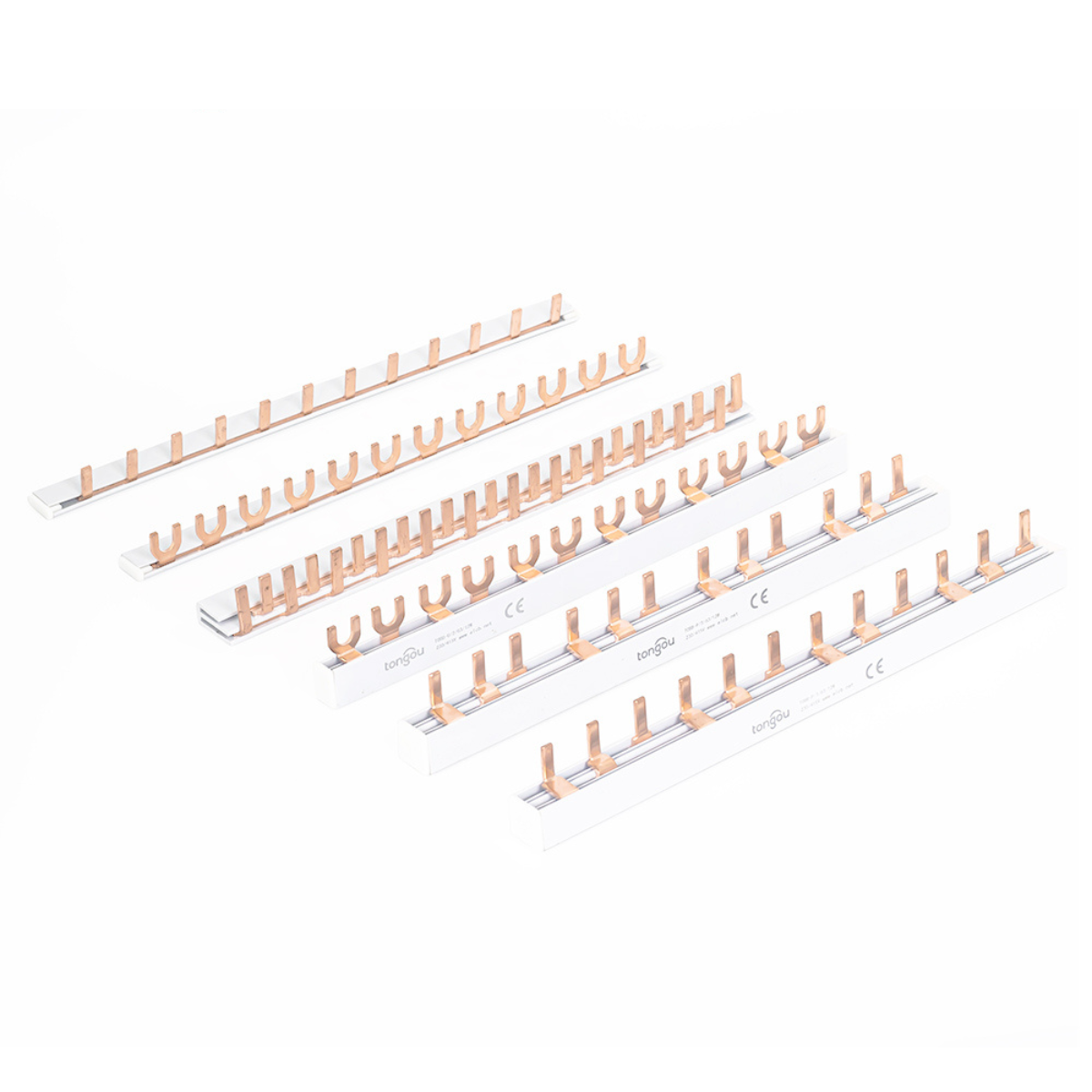

TOBB-P 1-4P Copper Busbar for Circuit breaker PIN MCB Distribution Box TONGOU

TONGOU Pin Type 1.4mm Thickness Red Copper Busbar

1P 2P 3P 4P - 4way 6way 8way 12way

• Copper Bar Width: 7mm

• Width of Pin: 4mm

• Length of Pin: 11.5mm

• Distance: 17.8mm

• Suitable Ampere: 1A-63A

• Flame Retardant Plastic-Best quality PVC Plastic

The Earth bus bar ease wiring of electrical item, enlarge connection area, decrease temperature rise and thus increase the electrical reliability of electrical items. Technical Feature

1.Increased contact area,reducing power consumption,reducing the temperature rise.

2.The busbar is in the insulation tank,The human does not touch the charged body.so it is safe,reliable,time-saving,convenient and cheap.

3.Made of pure copper,Good conductivity,low contact resistance and complete specifications.

4.Current:Up to 63A 5.Applicable ambient temperature:-25℃~+50℃
