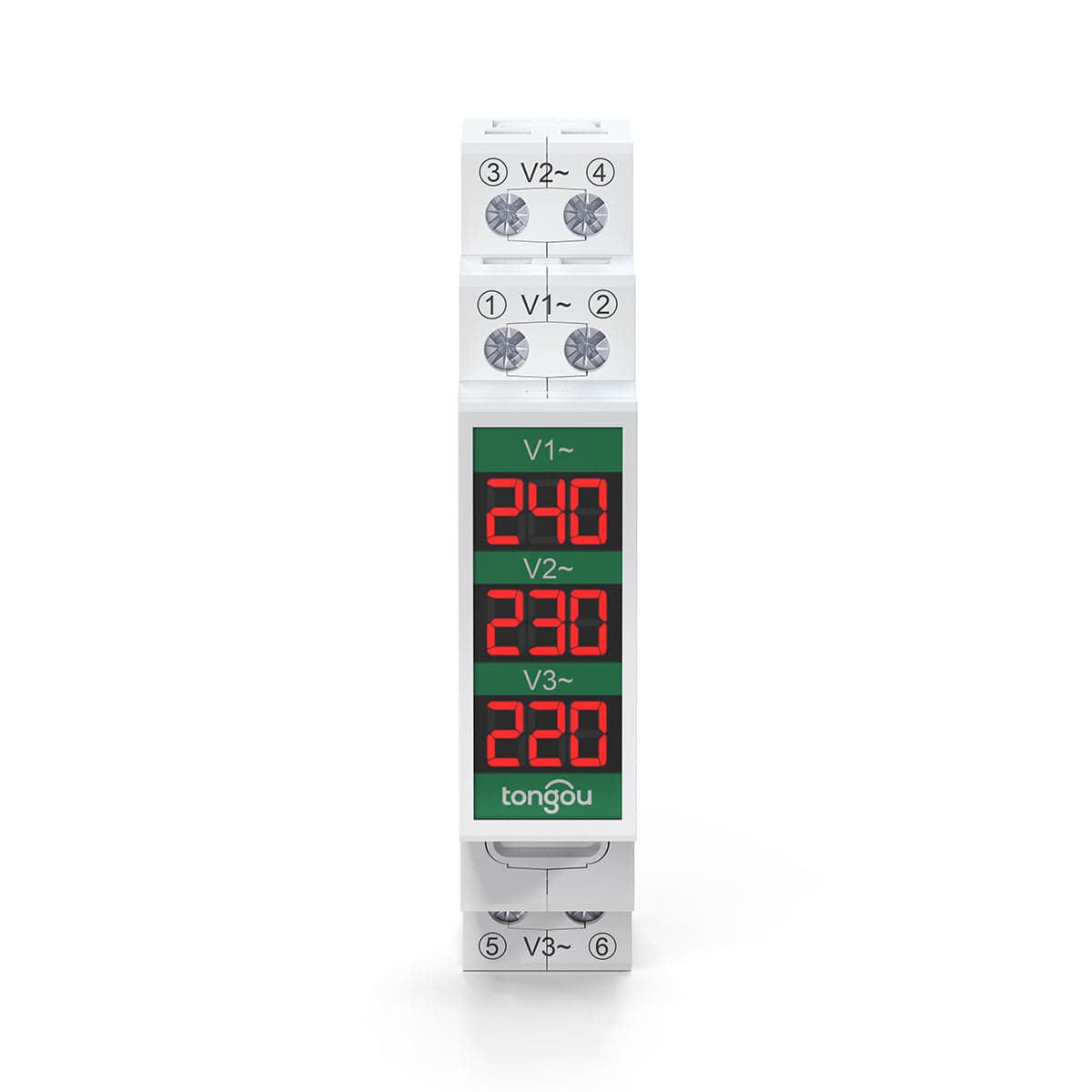

General Description
xHigh accuracy Test: comes with a wide voltage measuring range of AC 60-450 V and 2% high accuracy.
Measuring Rate: > 200 MS/time to simplify your work.
DIN Rail Holder: lightweight and compact in size, the entire DIN rail mount is very convenient to complete.
Safe to Use: made of high-quality ABS material, has high-quality ABS flame retardant material and a high-precision chip. The modular voltmeter is interference resistant and very durable.
Clear View: equipped with a screen for digital display, which is clearly visible day and night and easy to use.
Wide Range of Applications: allows a wide application on various machines, automations, device controls, etc., can be used in school, on the market, at home, in industry, in the laboratory and in other areas, very useful.
Technical Data
x| Item Model Number | TOVME |
| Manufacturer | Tongou |
| Switch Style | Digital Modular Voltmeter |
| Power Source | Connecting Wire |
| Wiring Terminal | Three-phase 3L+3N |
| Measurement Voltage Range | AC 60V~450V |
| Rated Frequency | 50/60Hz |
| Measurement Rate | >200MS/time |
| Protection Class | IP20 |
| Electrical Life | ≥15000 hours |
| Ambient Temperature | -5℃～+40℃ |
| Storage Temperature | -25℃～+70℃ |
| Relative Humidity | 1-80%(no condensation) |
| Working Pressure | 80～160Kpa |
| Sunlight | NO Sunlight |
| Measurement Accuracy | >100V:1% <100V:2% |
| Specification Met | CE |
| Included Components | Operating Manual |
| Batteries Required? | NO |
| Batteries Included? | NO |
